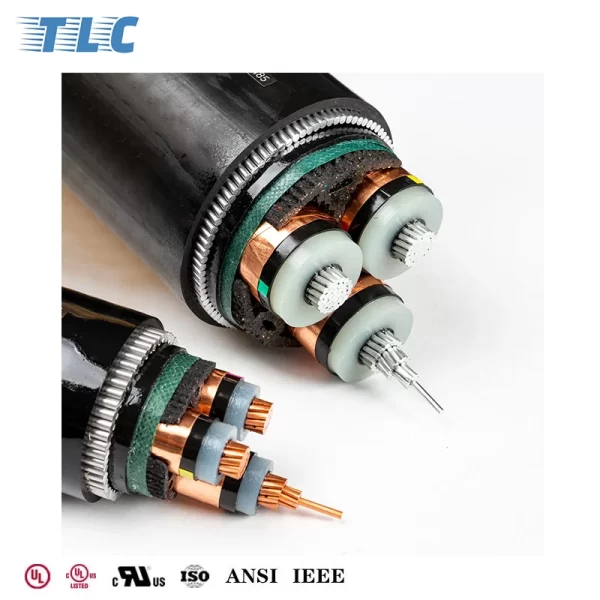

1. Conductor ( Copper, Aluminium)
2. Conductor screen
3. Insulation (XLPE, TR-XLPE)
4. Insulation screen
5. Copper screen ( Copper tape, Copper wire)
6. Wrapping tape
7. Outer sheath (PVC, PE,HDPE, LSHF)
8. Filler
Application
Medium voltage XLPE Insulation power cable is suitable for use in rated AC voltage 6~35kV system transmitting and distributing Iines
Depending on different protective layer ,it can be laid separately in air, cable tray, indoor wall bracket, cable box, direct burial underground , cable trenches, pipes and etc.
Standard：
IEC60502-2; IEC60228; IEC60332-1/2/3; BS6622; BS7835; DIN VDE 0276-620 ; AS/NZS 1429.1;GB/T12706；ICEA-S-66-524；
Core number : 1 core and 3 core
Long term operating temperature for cable conductor is 90℃
The ambient temperature for installation: ≥0℃
When cable in short-circuit ,Max conductor temperature is 250℃ with duration no longer than 5 seconds
Property of flame retardant, fire resistance, water proof , Low smoke halogen free can be chose.
